Mission Motors Unveils the Mission R

PAR Cycle CanadaPosted on

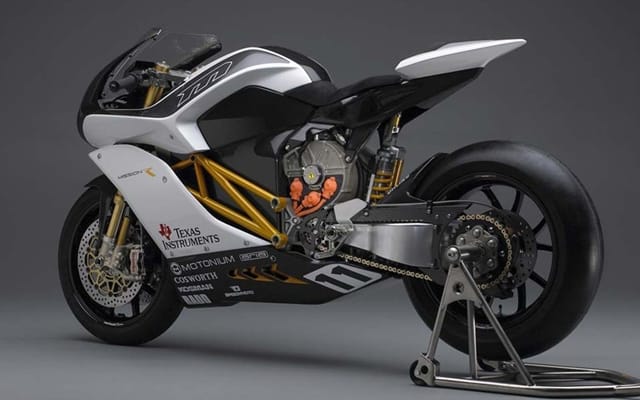

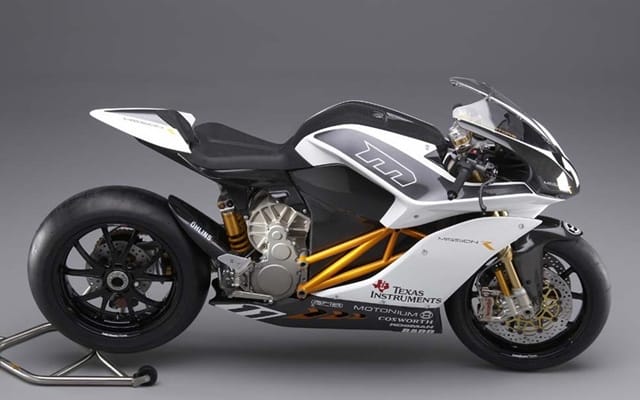

Mission Motorcycles has just unveiled their latest zero emissions superbike, the Mission R, which they say is the world’s most advanced electric racing motorcycle. The R’s liquid-cooled AC Induction motor in concert with a MissionEVT 100kW controller produces a claimed 140 hp and 115 ft-lb of torque to propel the all-new e-bike to a claimed top speed of 257 km/h (160 mph). The R features customizable regenerative braking maps and throttle maps, and all vehicle and ride data is accessible via WiFi or 3G connections. The chassis begins with a RADD-designed quad-Element aluminum and chrome-moly frame rolling on 17” Marchesini forged magnesium wheels. Suspension is comprised of fully adjustable Öhlins components and a single-sided aluminum swingarm, and brakes are by Brembo.

Pricing and availability for the custom-made machine has yet to be announced and there’s also no mention from Mission on how far or long the R can run on a single charge.

Mission R Specs

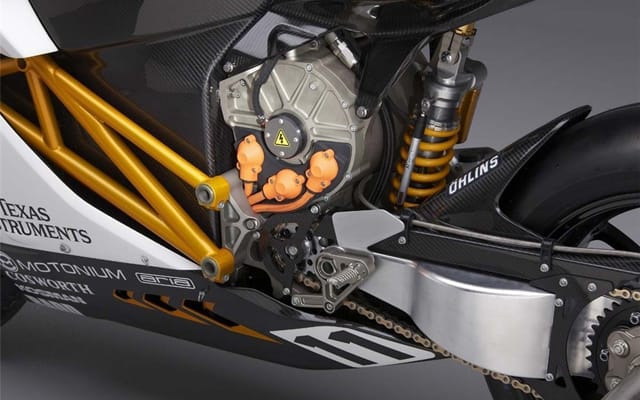

Power: 141 horsepower liquid-cooled 3-phase AC induction

Torque: Crank: 115 ft-lb (0 – 6400RPM)

Energy Storage

        * MissionEVT battery modules with integrated Battery Management System

        * Carbon fiber casing with dielectric liner

        * Swappable architecture

        * 14.4 kW·h total energy storage

Power Control

        * MissionEVT 100kw controller with integrated Vehicle Management System

        * Adjustable throttle mapping

        * Regenerative braking

        * WiFi & 3G data connectivity

Transmissions

        * Single speed, gear-driven primary reduction

Chassis

        * RADD-designed Quad-Element Frame

        * Billet aluminum and chrome-moly

        * Power-Unit as fully-stressed member

        * Battery box as semi-stressed member

Front Suspension

        * Öhlins FGR-000 TTX25 Gas Charged Fork

        * Adjustment for preload, ride height, high and low speed compression and rebound

Rear Suspension

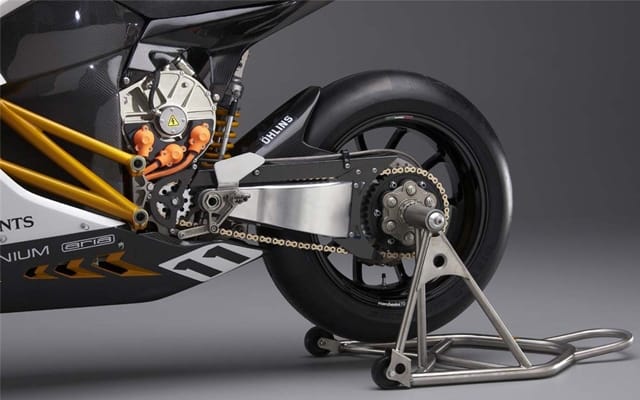

        * Single-sided billet aluminum swingarm with linear wheelbase/chain adjustment

        * Öhlins TTX36 Shock and linkage system

        * Adjustment for preload, ride height, high and low speed compression and rebound

Wheels

        * Marchesini forged magnesium 10-spoke.

        * Front: 17″ x 3.5″

        * Rear: 17″ X 6″

Tires

* Rear: 190/60 ZR17 Superbike Slick

        * Front: 120/70 ZR-7 Superbike Slick

Front Brake

* 2 Brembo 320 mm narrow-band racing stainless rotors

        * 2 Brembo 2-piece billet 4-piston 30/34 mm differential bore radial-mount calipers

Rear Brake

  * 245 mm stainless rotor

        * Brembo HPK 2-piston 34 mm caliper

PERFORMANCE

*Top Speed * 160+ mph
